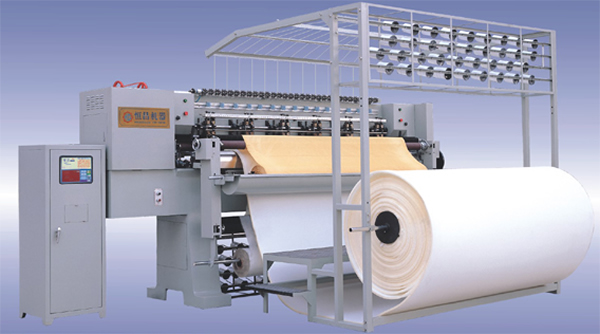

HC-94-3JB High speed computerized multi-needle Chain Stitch quilting machine



SPECIAL FUNCTION:

1.Function of automatic stop on breaking of thread and needle raising.
2.Bottom thread cutting and fabric rolling are the fastest in the world with production rate of 20% to 50% higher than any other quilting machines in the nation.
3.Bottom thread uses common mixed cotton thread for all patterns.
4.Very little deformation when quilt on between thick and thin fabric.
5.Uses high speed aero dynamic bottom thread cutting machine architecture, and therefore, can produce and uniform and threadless edge.
6.Both X and Y axes are driven by high power Panasonic servo motors that are capable of quilting fabric materials at 50mm in thickness.

7.Nation's first built pattern in pattern quilting machine. (This machine is also capable of quilting single independent, all round 360 degree and 180 degree patterns).

Technical Specification:

Size (length*width*height)	4800 x 1220 x 2000(mm)
Weight	3500kg
Quilt width	2450mm
RPM	750-950 RPM
Production speed	65-180 m/h
Needle type	180/24
Needle arrangement	(50.8, 76.2, 127) (76.2, 76.2, 152.4)
Max. horizontal movement	250mm
Needle space	25.4mm
Voltage	380V/220V 50Hz/60Hz
Max. Stitch size	2-7 mm
Power	3.5 KW
Quilting thickness	≤50mm

Quilting Machine Applications:
Bed equipment and home furnishing materials and different patterns are available
