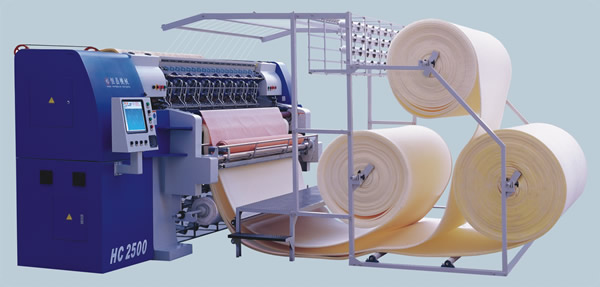

HC2500 High speed computerized multi-needle chain stitch quilting machine

(180° standard pattern and 360° tack & jump pattern )

quilting machine

SPECIAL FUNCTION:

New Fabric loading design. Easy loading material.
Tilted body design. Easy to operate and maintain.
Thread brake detector.
Using air cylinder for thread cutting tail length.
Operated using high quality sealed bearings that do not need lubrication.
Adjustable presser foot lifting mechanism enables you to quilt a broad range of material thickness.
Emergency safety devices.
Improved quilting software control system allows more precise and stable quilting operations.
CAD pattern drawing pattern system allows you to create your own designs.
Machine comes with 100-300 design patterns.
Error problem detection system.
Pattern compensation.


Quilting Machine Technical Specification:
Size (length*width*height) 5100×1500×2000(mm)
Weight 4000kg
Quilt width 2450mm
Rotation speed 600-980RPM
Production speed 80-200m/h
Needle type 140/22, 160/23, 180/24
Needle arrangement (50.8,76.2,127) (76.2,76.2,152.4)
Max. horizontal movement 450mm
Needle space 25.4mm
Power supply 380V/220V 50Hz/60Hz
Stitch size 2-7 mm
Power 7 KW
Quilting thickness ≤80mm

Feature Icon:

19-inch Liquid Crystal Display Neweat Double-bearing Needle Row Support Adjustable Material Holder Simple Power Supply, Easy To Maintain

Applications:

Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and more.

INSTALLED CHART     QUILT PATTERN
