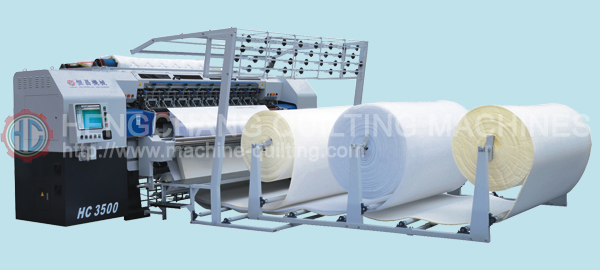

HC3500 High speed computerized multi-function Chain Stitch quilting machine

SPECIAL FUNCTION:

Independent sewing heads,allows quilt with simple patterns,T&J patterns and single head quilting patterns.(Patented product).
State of the art tracking,superior tracking system allows effortless movement of foam to be fed into the quilter(Patented product).
Adjustable presser foot lifting mechanism enables you to quilt a broad range of material thickness and patterns.
A high powered fast speed controlled servo motor for thick quilting with accuracy.
New main shaft control for easy timing adjustment.
Using high quality sealed bearings.
Newly updated software allowing quick design changes of operation.
Thread break detector.
Using air cylinder for thread cutting tail length.
Emergency safety devices.
Diagnostic detection.

Quilting Machine Technical Specification:

Size (length*width*height)	5500X1500X2500(mm)
Weight	5000kg
Quilt width	2450mm
Rotation speed	600-1000RPM
Production speed	80-230m/h
Needle type	140/22, 160/23,180/24
Needle arrangement	(50.8,76.2,127) (76.2,76.2,152.4)
Max. horizontal movement	480mm
Needle space	25.4mm
Power supply	380V/220V 50Hz/60Hz
Stitch size	2-7 mm
Power	10 KW
Quilting thickness	≤80mm

Products:

Feature Icon:

19-inch Liquid Crystal Display	Powerful spindel servo motor	Independent disconnection	Dynamo encoder
quilt pattern	Quilt Pattern	quilt pattern	quilt pattern

Applications:
Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and more.
