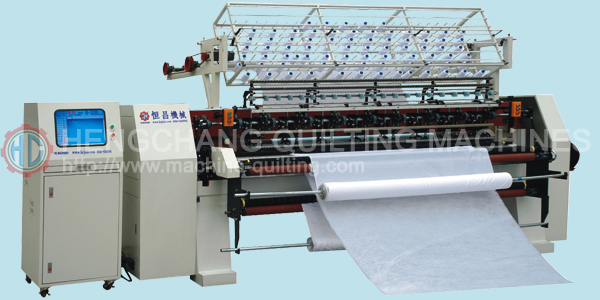

HC-64/94/98/118/128 High speed computerized multi-needle shuttle quilting machine

SPECIAL FUNCTION:

·Multi-jump large pattern
·Speed can be changed digitally
·Fuction of antomatic stop on breaking of thread
·Needle raising
·One unit fabric presser
·Segmented pattern editing
·Easy and quick pattern editing
·Large quantity of selectable patterns ready for use
·Use panasonic servo motor
·Machine speed can reach 450-550rpm, stitch size of 2-6mm
·Automatic pattern adjustment that solves the problem of pattern distortion when

Technical Specification：

Speciflcation/modle	HC-64-2	HC-94-3	HC-98-3	HC-118-3	HC-128-3
Dimension	3200X1150 X1700	4100X1050 X1750	4600X1150 X1800	4810X1150 X1800	5100X1150 X1800
Width of quilting	1700	2450	2550	3000	3300
Space between needles	76.2	76.2 152.4	76.2 152.4	76.2 152.4	76.2 152.4
Space betwen needle bars	25.4	25.4	25.4	25.4	25.4
X-axis stroke	200	305	405	305	305
Thickness of quilting	≤20	≤20	≤20	≤20	≤20
Length of step	2～6	2～6	2～6	2～6	2～6
Speed of production	20-110m/hr	20-100m/hr	20-100m/hr	20-90m/hr	20-90m/hr
Model of needle	16#、19#	16#、19#	16#、19#	16#、19#	16#、19#
Speed of main shaft	550 RPM	550 RPM	550 RPM)	450-550 RPM	450-550 RPM
Power	3 KW	3.5 KW	4 KW	4.5 KW	4.5 KW
Voltage	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ
Gross weight	1700kg	2300kg	2600kg	3000kg	3300kg

HC-64/94/98/118/128 Quilt Pattern：


Feature Icon:

Bobbin Winding Machine

Applications:
Mattress panel, mattress pads, bedspreads, comforters, bedding, upholstery, and more.
